Product DEtails

  • 20W LED Constant Current Driver Power Output Current 600mA
  • 20W LED Constant Current Driver Power Output Current 600mA
  • LED Power Supply - 20W LED Constant Current Driver Power Output Current 600mA

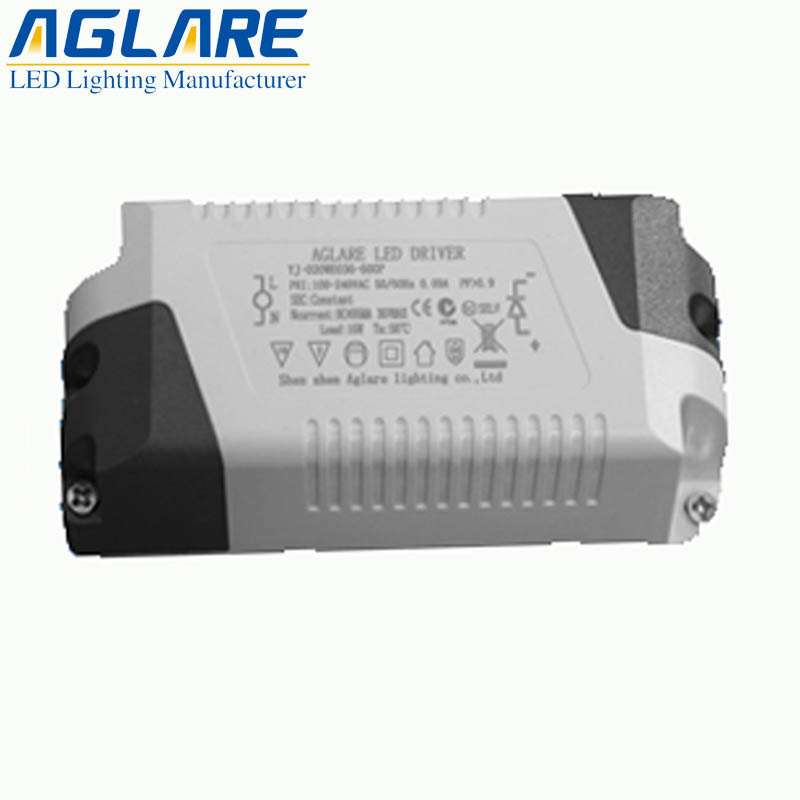

20W LED Constant Current Driver Power Output Current 600mA

Item Type: YJ-020WE036-600P

  • LEDchip:
  • Item Type:YJ-020WE036-600P
  • Rating:
  • Lamp Power(W):20W
  • Input Voltage(V):AC 90V-240V
  • Warranty(Years):2
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

The 20W LED Constant Current Driver Power of Aglare Lighting Co., Ltd is a built-in isolated constant current driver which is a specially designed for the LED down light, LED bulb,LED candle light. The driver adopted advanced constant current and constant voltage control scheme, with a wide range of input voltage, small volume, good stability, complete protection function, long life, high performance and so on.

The 20W LED Constant Current Driver Power Feature:

1. High Efficiency Power

2. long life, high performance

3. Environment friendly, no UV or IR radiation

4. SGS-Approved,RoHS-compliant.

Model No: YJ-020WE036-600P
Input Voltage: AC90-240V
Input Parameter: 47-63Hz, PF>0.9
Output Parameter: n>0.8, 600mA±5%
Output Voltage: DC max36V
Output current: 600mA±5%
Load Power: 20W
Working Temperature: -20~40 ℃
Storage Temperature: -20~80 ℃

This 20W LED Constant Current Driver Power are designed to provide complete, outdoor/indoor, installation-ready DC power for any LED lighting application.

Shenzhen Aglare Lighting Co., Ltd, was established in 2005. We a manufacturing & trading combo, produce and export amusement led bulbs for more than 10 years.
