Product DEtails

  • 70mm LED Single Color 3528 SMD AC24V Amusement Park LED Pixel Light
  • 70mm LED Single Color 3528 SMD AC24V Amusement Park LED Pixel Light
  • 2PIN Single Color - 70mm LED Single Color 3528 SMD AC24V Amusement Park LED Pixel Light

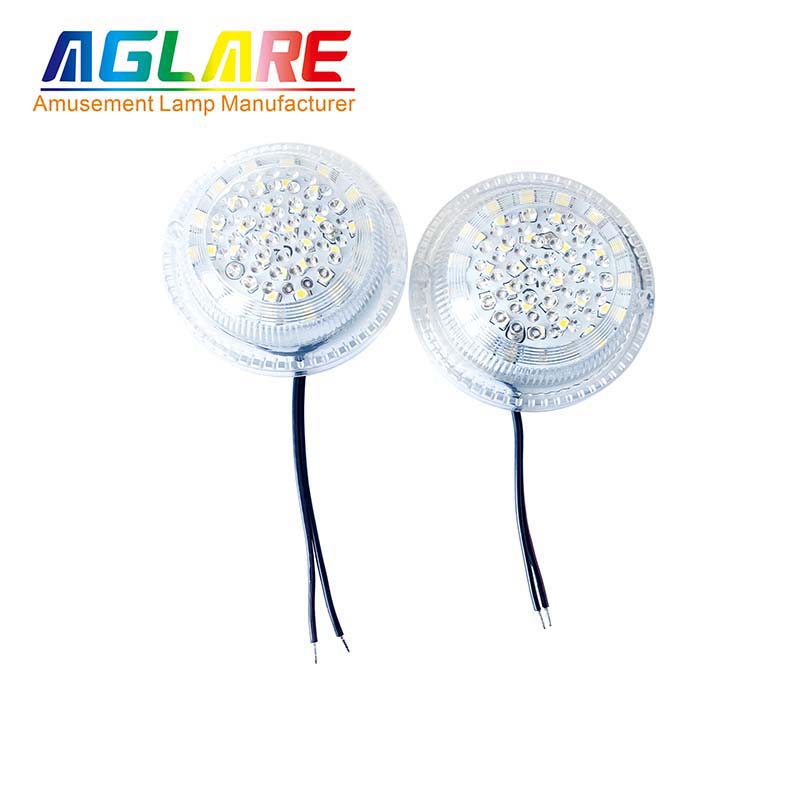

70mm LED Single Color 3528 SMD AC24V Amusement Park LED Pixel Light

Item Type: YJLED-074S32W-80K

  • LEDchip: 3528
  • Item Type: YJLED-074S32W-80K
  • IP Rating: IP65
  • Lamp Power(W): 1W
  • Input Voltage(V): AC 24V
  • Warranty(Years): 1
Add to
Inquiry
  • Product Details

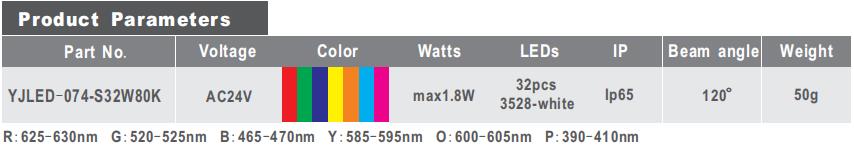

  • Parameters

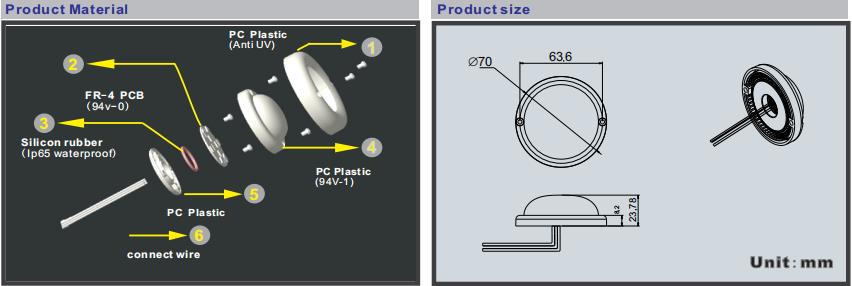

  • Structure
  • Application

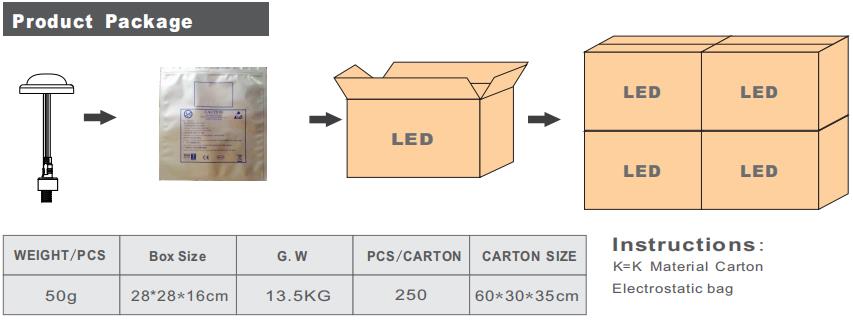

  • Package
  • Downloads
Model No: YJLED-074S32W-80K
Power: 1W
IP Degree: IP65
Input Voltage: AC24V
Power Factor: 0.9
Chip: 3528 SMD
CRI: 75
Color: R/G/B/Y/W/WW/P
Beam Angle: 120°
Diameter: 50mm
Working Temperature: ﹣20℃-50℃
LED quantity: 32pcs

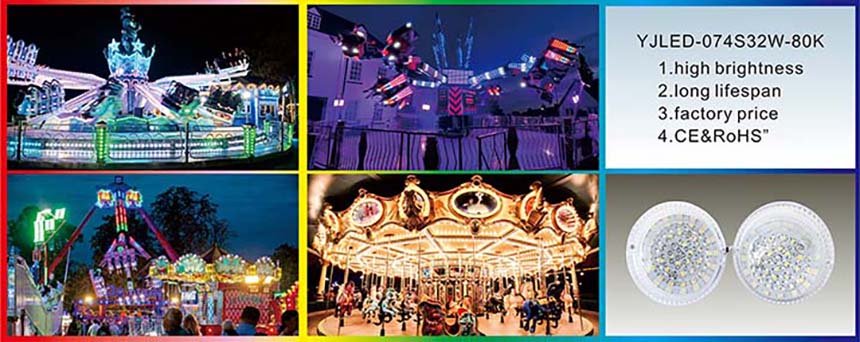

Amusement LED lamps are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.

  • Instructions:

    K=K Material Carton Electronic Bag

  • Caution:

    Please read the specification before used:
    working temperature range -25°C-45°C
    working voltage range less than +_10
    Please turn off the power before installation

Shenzhen Aglare Lighting Co., Ltd, was established in 2005. We a manufacturing & trading combo, produce and export amusement led bulbs for more than 10 years.
