Product DEtails

  • 50mm LED single color 3528 SMD amusement LED pixel light AC24V
  • 50mm LED single color 3528 SMD amusement LED pixel light AC24V
  • E14 Single Color - 50mm LED single color 3528 SMD amusement LED pixel light AC24V
  • E14 Single Color - 50mm LED single color 3528 SMD amusement LED pixel light AC24V
  • E14 Single Color - 50mm LED single color 3528 SMD amusement LED pixel light AC24V

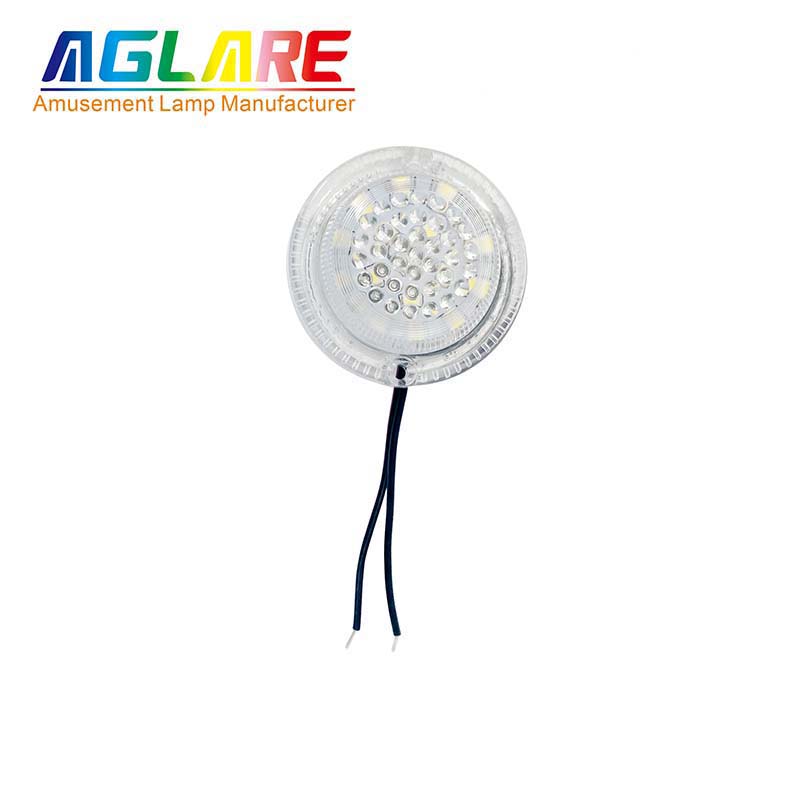

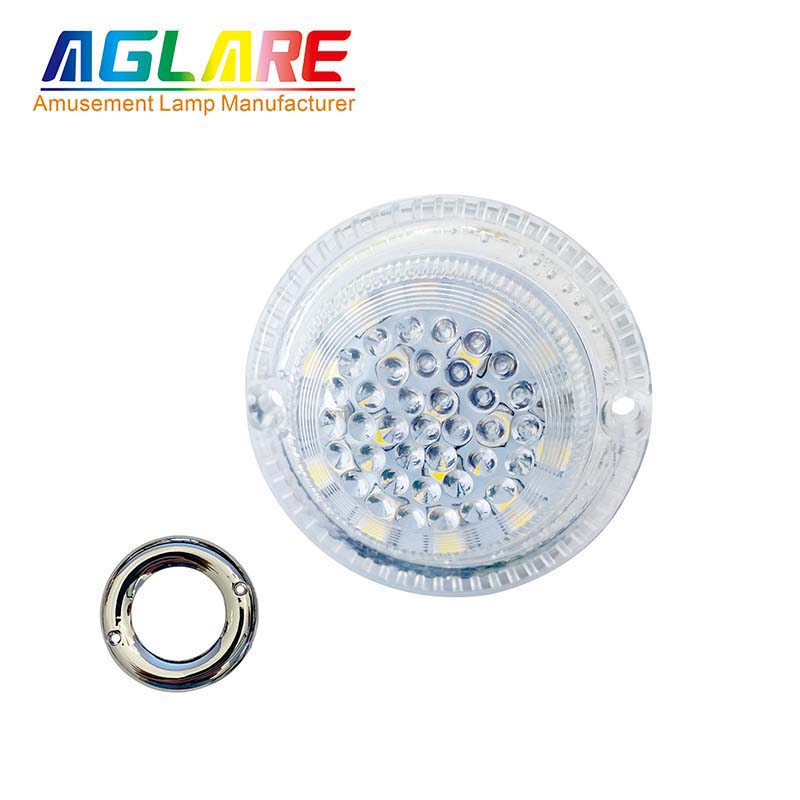

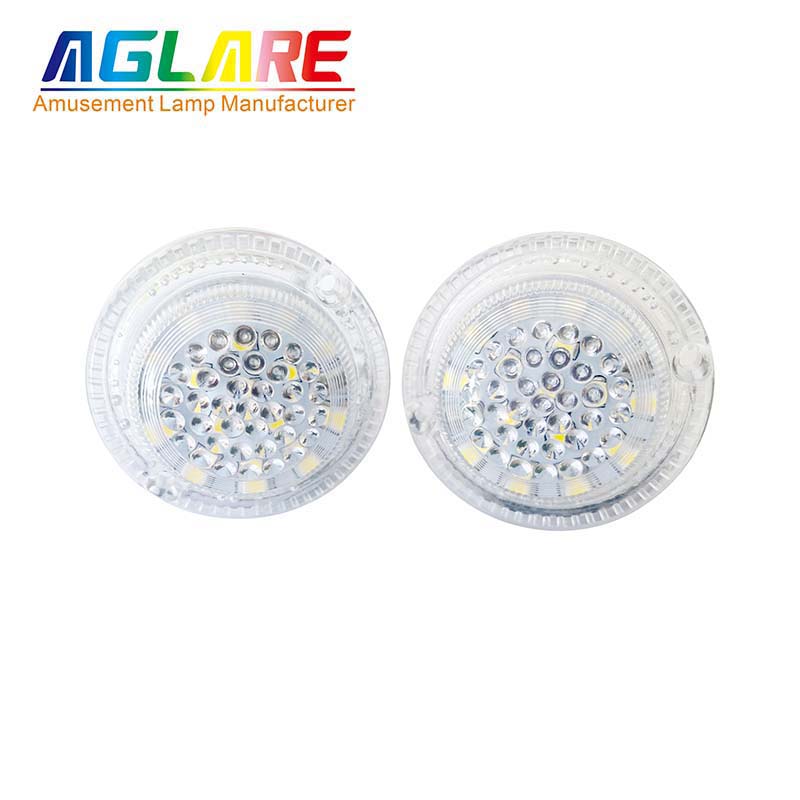

50mm LED single color 3528 SMD amusement LED pixel light AC24V

Item Type: YJLED-073S16W-80K

  • LEDchip: 3528
  • Item Type: YJLED-073S16W-80K
  • IP Rating: IP65
  • Lamp Power(W): 1W
  • Input Voltage(V): AC 24V
  • Warranty(Years): 1
Add to
Inquiry
  • Product Details
  • Parameters

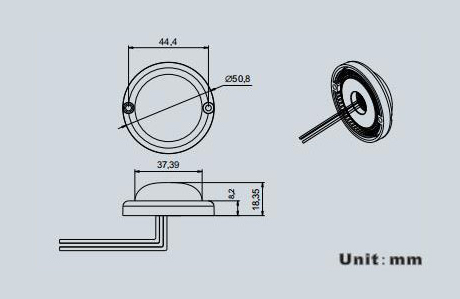

  • Structure
  • Application

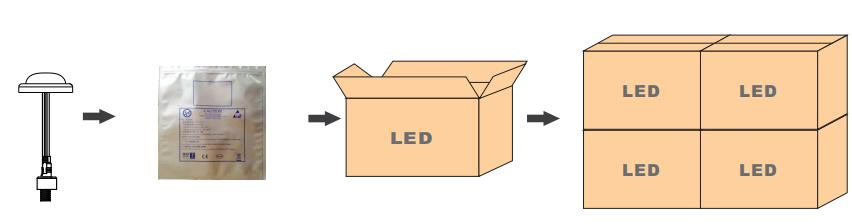

  • Package
  • Downloads

50mm led single color 3528 SMD amusement led pixel light AC24V

1.Since 2005, Aglare specialize in RGB & Single color, Programmable and Auto Programmed Led pixel amusement rides lighting .
2.Class A quality with 1 years warrany for all items.
3.Orignal Sanan chips with 100% Class A grade.
4.All leds 100% Qc passed before the shipment.
5.Fully automantic instruments and equipments like solica crystal,wire,sealing glue,spectral color separation.


Company description:

Shenzhen Aglare Lighting Co., Ltd provide outdoor&indoor LED fLood fights from 50W to 500W,any led flood light cool beams with no UV or IR radiation ,Long lifespan and energy saving, high efficiency of heat sinking.We also provide some RGB LED floodlights with controller and maintenance free. LED flood lights are one of out hot sale products, we also make and market high power LED lamps, LED strip lights,LED panel lights, LED tube lights, LED falling snow lights,LED ceiling lights,LED  modules,amusement LED lamp, and other  variety  of  LED  lighting products, which are widely applied in backlight, decoration and illumination.

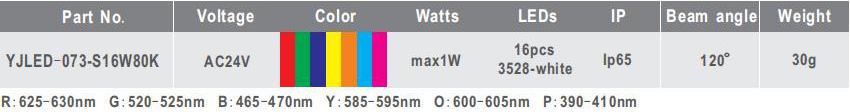

Model No: YJLED-073S16W-80K
Power: 1W
IP Degree: IP65
Input Voltage: AC24V
Power Factor: 0.9
Chip: 3528 SMD
CRI: 75
Color: R/G/B/Y/W/WW/P
Beam Angle: 120°
Diameter: 50mm
Working Temperature: ﹣20℃-50℃
LED quantity: 16pcs

50mm led single color 3528 SMD amusement led pixel light AC24V
  • 50mm led single color 3528 SMD amusement led pixel light AC24V
  • 50mm led single color 3528 SMD amusement led pixel light AC24V
  • 50mm led single color 3528 SMD amusement led pixel light AC24V
  • 50mm led single color 3528 SMD amusement led pixel light AC24V

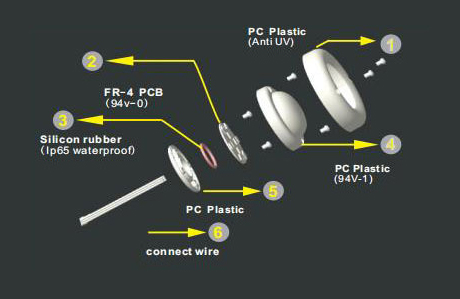

    Product Material

  • 50mm led single color 3528 SMD amusement led pixel light AC24V

    Product Size

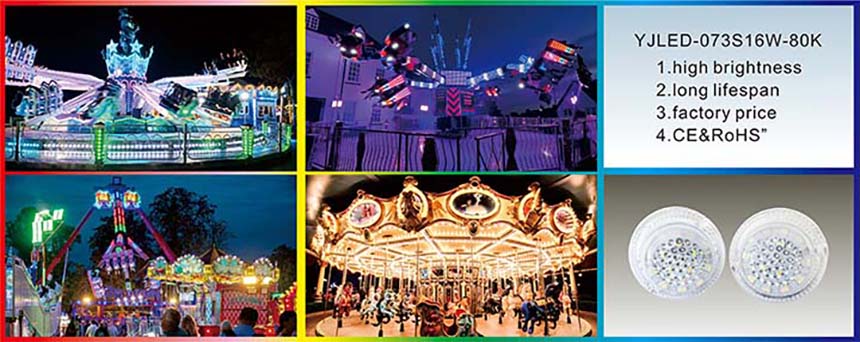

Amusement LED lamps are widely applied in amusement equipments in theme parks, such as Ferris Wheels, Roller Coasters, Carousels, Merry-go-rounds, Wheel Rides, Tower Rides, Flume Rides and Water Rides.


50mm led single color 3528 SMD amusement led pixel light AC24V
50mm led single color 3528 SMD amusement led pixel light AC24V

Weight/PCS Box Size G.W PCS/CARTON CARTON SIZE
30g 28*28*16cm 12KG 360 60*30*35cm


  • Instructions:

    K=K Material Carton Electronic Bag

  • Caution:

    Please read the specification before used:
    working temperature range -25°C-45°C
    working voltage range less than +_10
    Please turn off the power before installation

Shenzhen Aglare Lighting Co., Ltd, was established in 2005. We a manufacturing & trading combo, produce and export amusement led bulbs for more than 10 years.
