K-1000C Controller DC5-24V Addressable Programmable Controller with SD Card,Bluetooth Function

Item Type:

  • Item Type: SPI LED Controler
  • Model Number: K-1000C
  • Lamp Power(W):2W
  • Input Voltage(V): DC5V -24V
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

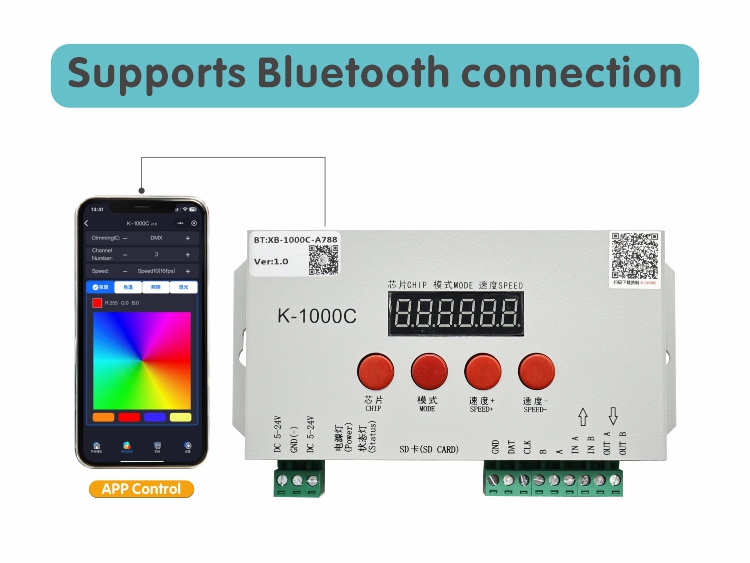

Bluetooth Function K1000C WS2812B APA102C SK6812 WS2811 WS2801 Led Strip 2048 Pixels Controller DC5-24V Addressable Programmable Controller with SD Card RGB Programmable Pixel Led Controller Full Color DMX Controller

Product Description:

1.High Frame Rate:Achieves 30fps frame rate for less than 512 pixels, providing smooth and fluid lighting control.
2.High Compatibility:Supports single-line or double-line chips, making it versatile for various RGB LED applications.
3.Multi-Controller Synchronization:Cascadable design enables multiple controllers to work synchronously, playing back content from a single 4.SD card.
5.Supports 2048 Pixels:Maximum load power of 1 allows for control of up to 2048 pixels, ensuring extensive lighting coverage.
Extended Temperature Range:Operates efficiently from -30 to 85 degrees Celsius, suitable for a wide range of environments.

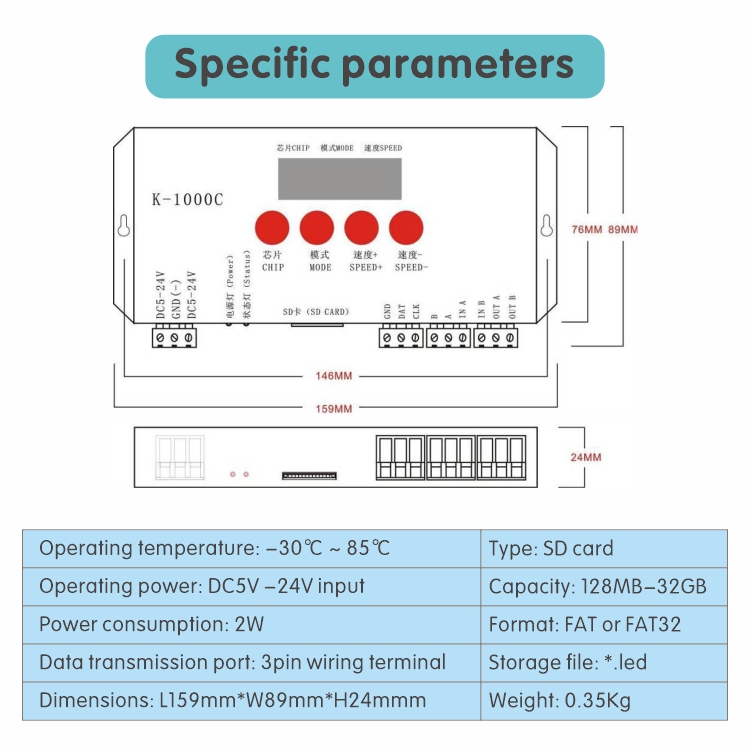

Product Parameters

programmable led controller

 Model Number： K-1000C
Operating power:  DC5V-24V input
Type:  SD card
Capacity: 128MB-32GB
Power consumption: 2W
Format:  FAT Or FAT32
Data transmission port: 3pin wiring terminal
Dimensions: L159mm*W89mm*H24mmm
Operatingtemperature: -30℃℃~85℃℃
Storage file:  *.led
Item Type:  SPI LED Controler
Weight: 0.35kg


k-1000c programming
k-1000c controller
addressable led controller software
programmable led controller
k-1000c
programmable controller
Turn your space into a vibrant light spectacle with our Bluetooth Function K1000C SD Card RGB Programmable Pixel Led Controller Full Color DMX Controller. This controller is the perfect addition to any LED project, bringing dynamic and exciting lighting effects that will surely leave anyone who sees it in awe.

Product Features

1、32 to 65536 degree Gray control, Gamma correction procession handle.

2、Support various point, line light source, and all kinds of rules and specific shaped handle.

3. The controller has one output port, can support up to 512/2048 pixels(DMX lighting support up to 512 pixels).

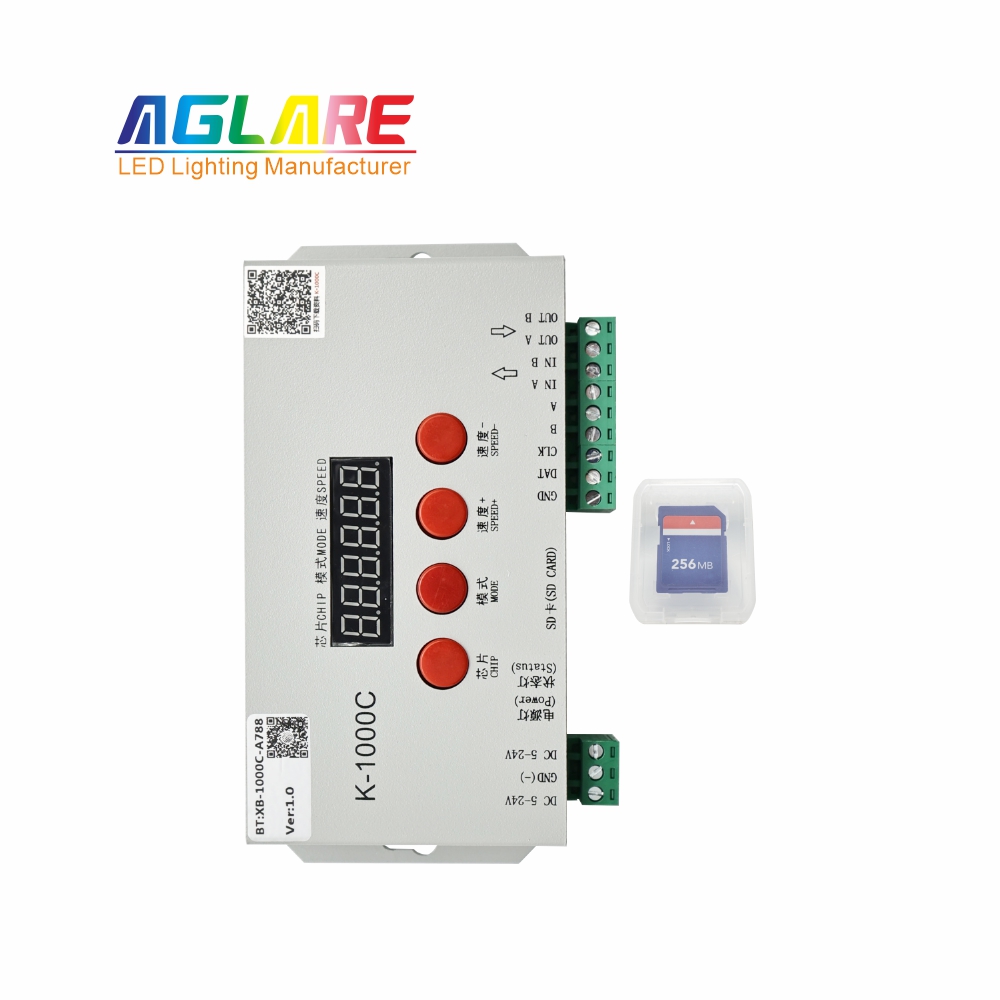

4、Play content stored in the SD card , the SD card can store up to 32 effects File, SD card capacity support 128MB-32GB.

5、The controller can single set use,also multiple controllers cascade, cascade optical isolation mode: interference, better stability, cascade distance between two controllers can reach up to 150 meters, need to use 0.5M² pure copper power cord.

6、The controller support chip can lock the support IC in software, or not lock the support IC in the software, select the support IC through the controller CHIP button, this scheme is more flexible and convenient.

7、For the DMX lighting IC, the controller comes with write address function; Install LEDEDIT software on window computer..

8、Support load lamp is 4 channels (RGBW) pixels, or split into single channel point pixels.

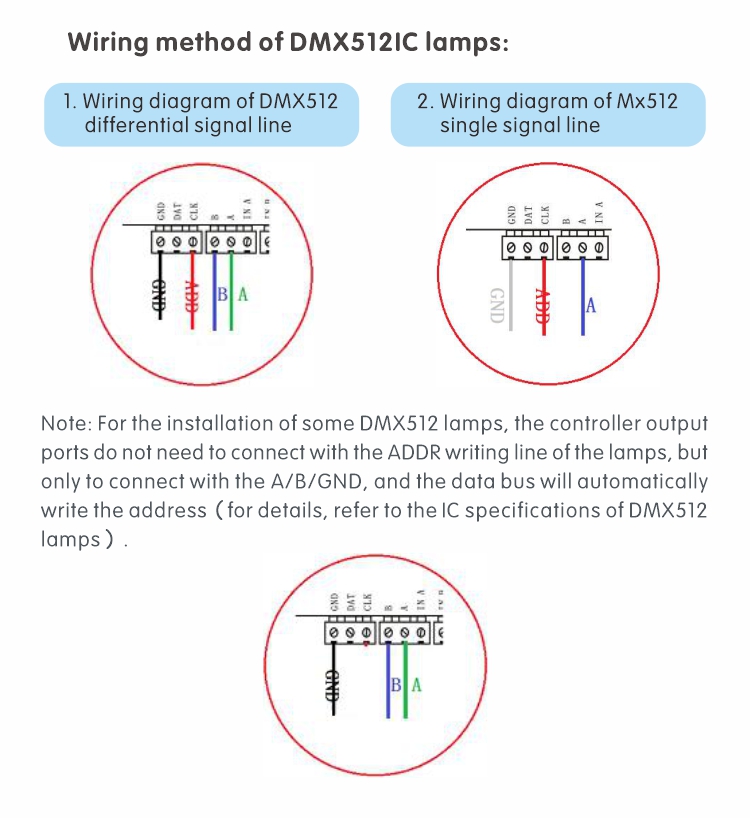

9、Enhanced 485 TTL and 485 differential (DMX) signal output.

10、The controller comes with the test effects were as follows: 1 red, green, blue and black jump; 2 red, green, blue and black gradient; 3 red, green, blue and goes.

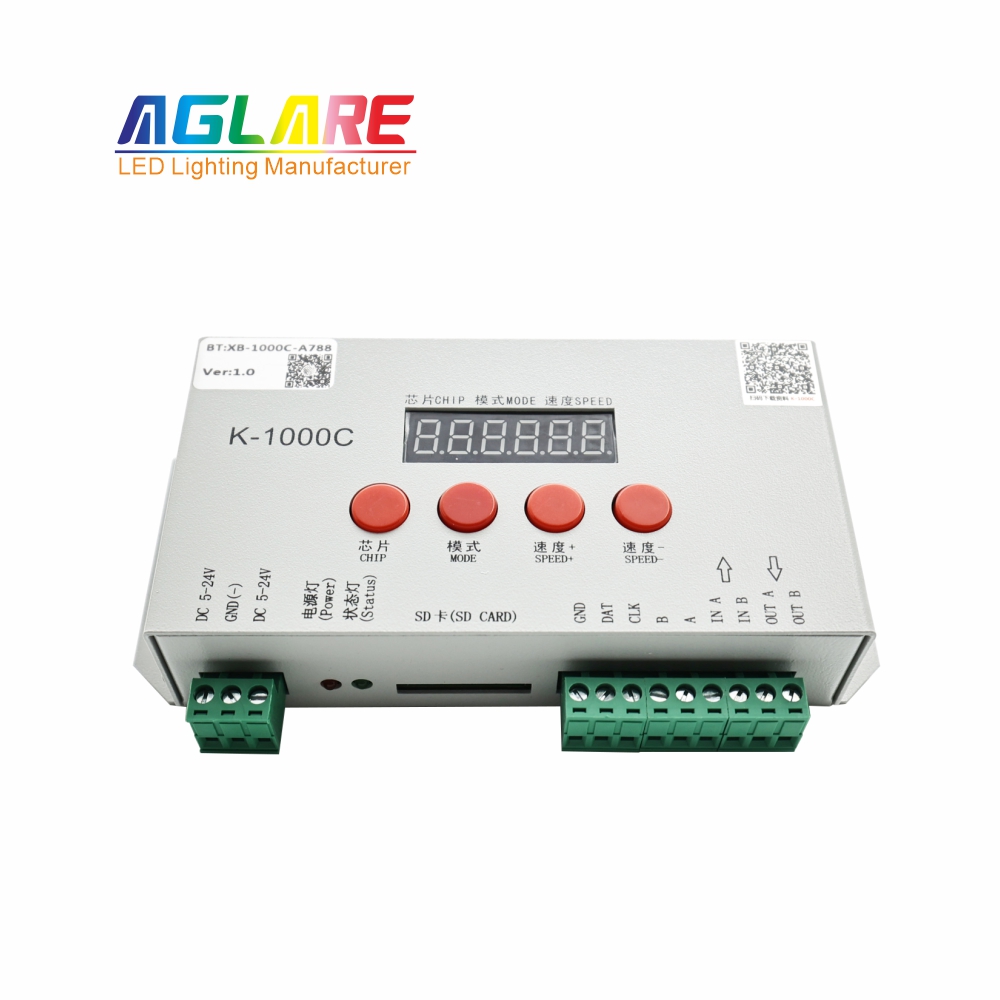

Professional K-1000C Controller
Our controller is a professional K-1000C model, an upgrade of the T-1000S. This means it can support all the smart IC on the market, including WS2812B, WS2811, WS2813, SK9822, SK6812RGBW, APA102C, WS2801, and many more. Whether it's a dual data LED chip, data and clock LED chip, or a single data LED chip, our controller can handle it.

Ideal for DIY Projects
This controller is perfect for all kinds of LED projects. It supports LED
 Pixel,LED strips, LED matrix panels, and special-shaped/different data directions projects. With a variety of special lighting effects like fireworks, chasing, rainbow, scrolling text, single color, full color, and running, your DIY light project will never be boring!

Cascade Synchronization
For larger pixel projects, cascade synchronization is a feature you don't want to miss. Our controller has one port that can support up to 2048 pixels (DMX LED 512 pixels). By cascading many controllers, you can create a much wider array of lighting effects.

High Refresh Rate
Our controller comes with different refresh rates depending on the number of pixels; 512 pixels get 30 frames/second, 1024 point pixels receive 25 frames/second, and 2048 pixels acquire 15 frames/second. The maximum it can control is WS2812B 2048 pixels.

Specifications
Supports all smart IC on the market
Supports up to 2048 pixels
Refresh Rate: 30 frames/second for 512 pixels, 25 frames/second for 1024 pixels, 15 frames/second for 2048 pixels
Supports a wide variety of lighting effects
How to Use

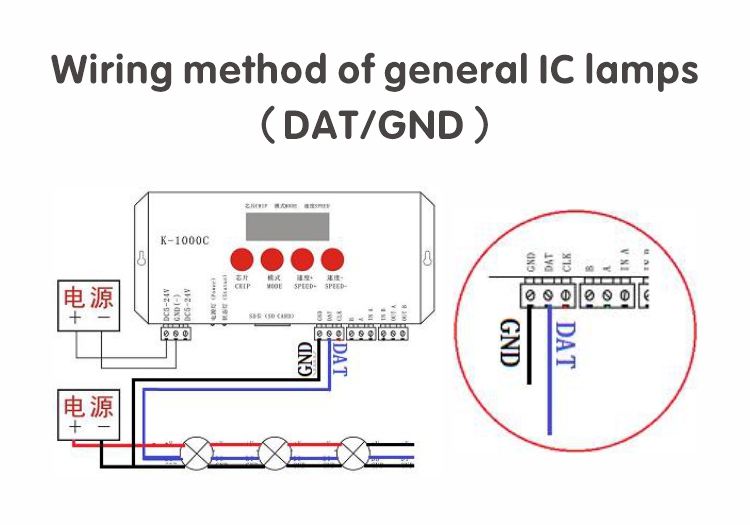

Connect your LED lights to the controller's port.
Configure your desired lighting effect using the LEDEdit software.
Sync multiple controllers if necessary.
Enjoy your dynamic and captivating light show!
