Product DEtails

Home > Product > Accessories > LED Controller > Bluetooth Connection K-8000C Pixel Controller with SD card
  • Bluetooth Connection K-8000C Pixel Controller with SD card
  • Bluetooth Connection K-8000C Pixel Controller with SD card
  • LED Controller - Bluetooth Connection K-8000C Pixel Controller with SD card
  • LED Controller - Bluetooth Connection K-8000C Pixel Controller with SD card
  • LED Controller - Bluetooth Connection K-8000C Pixel Controller with SD card
  • LED Controller - Bluetooth Connection K-8000C Pixel Controller with SD card

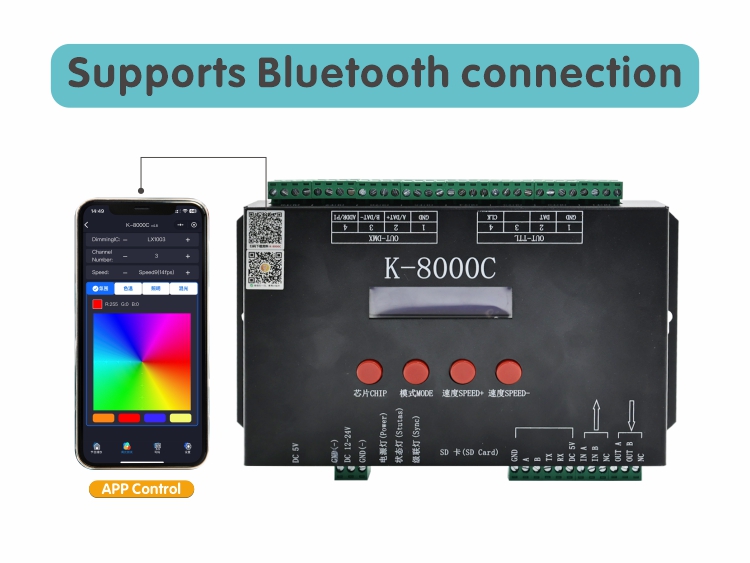

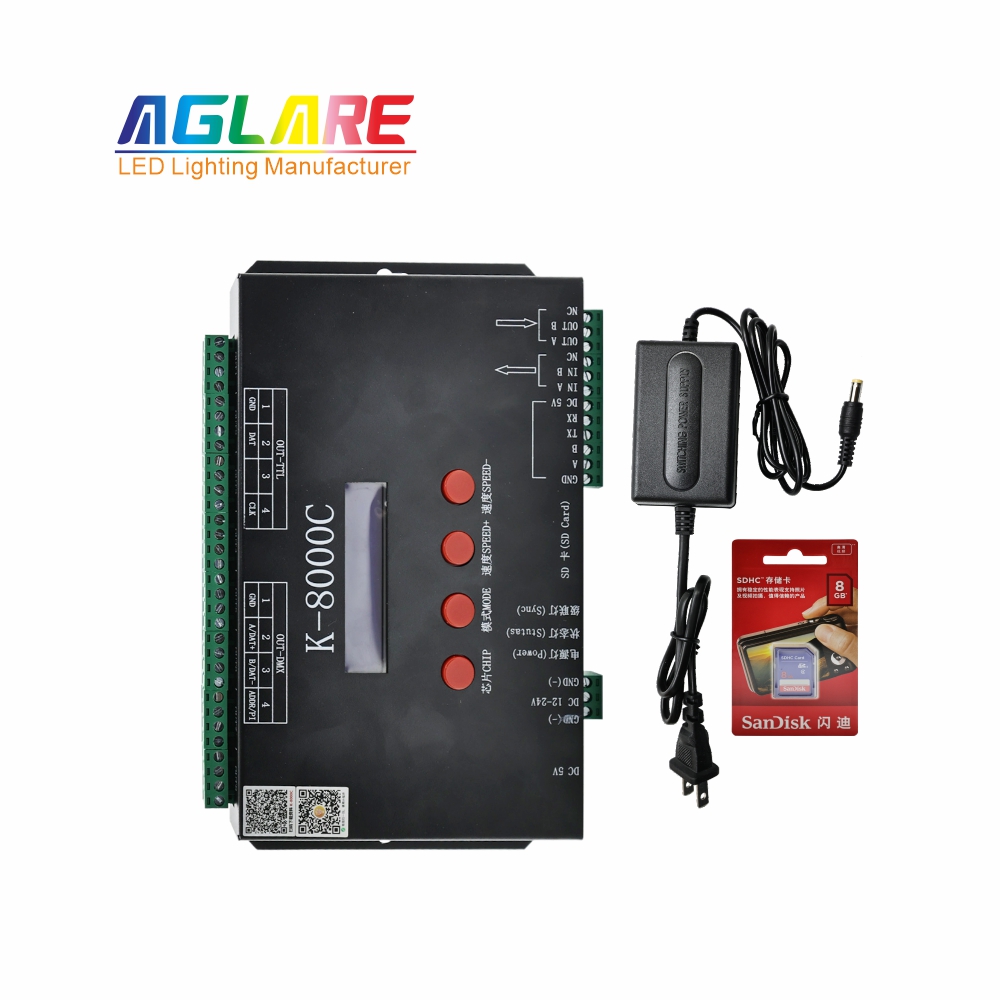

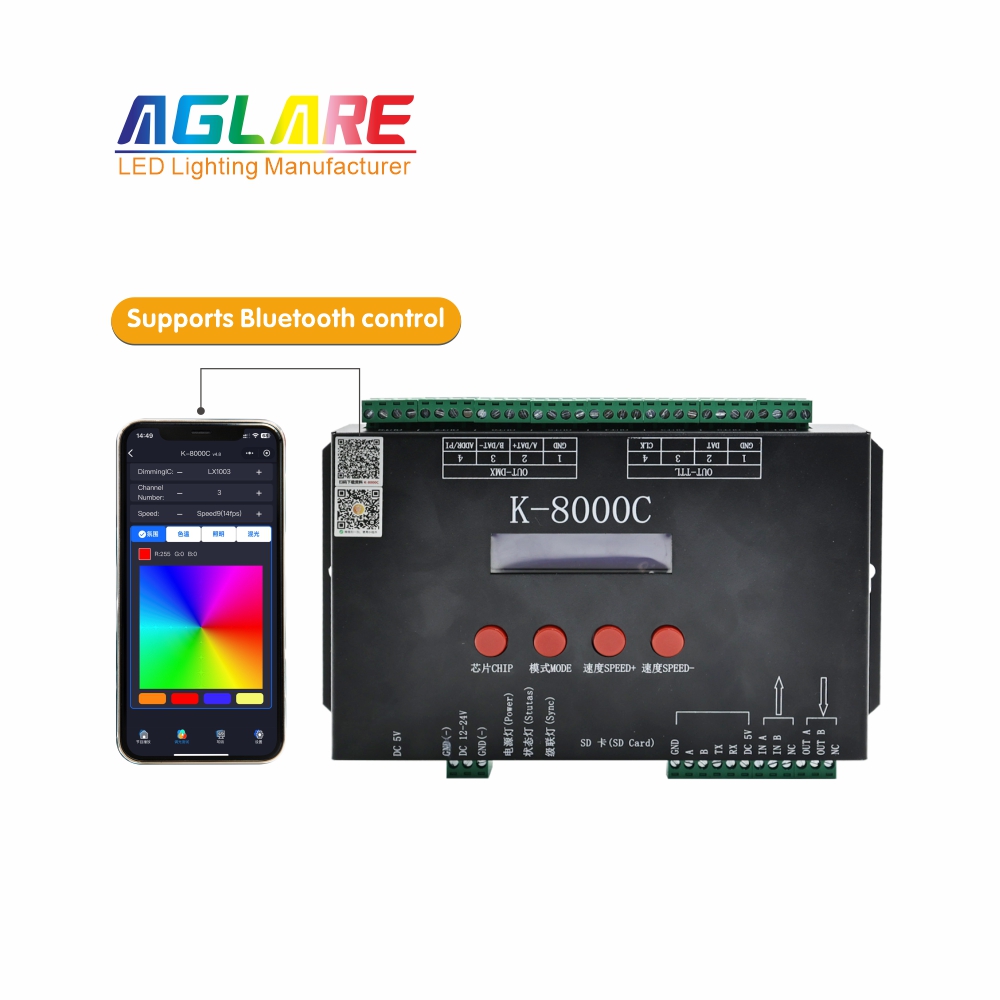

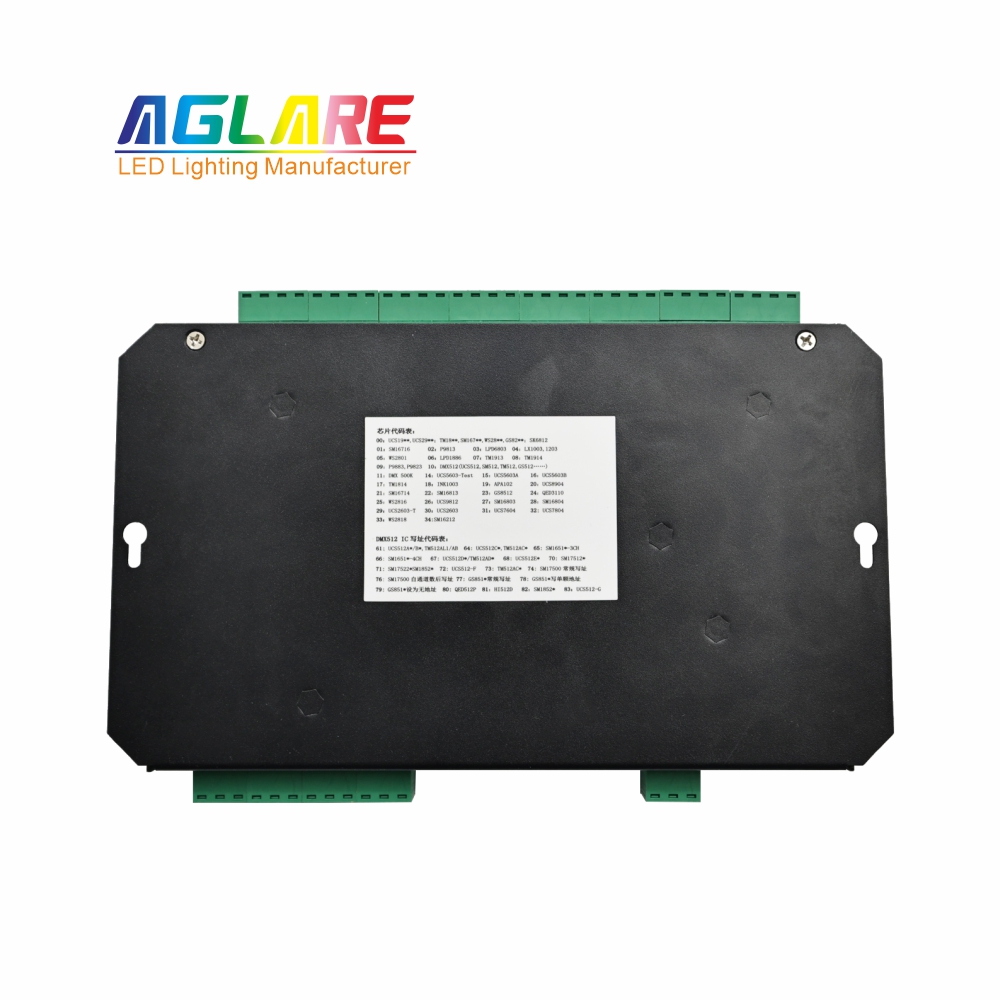

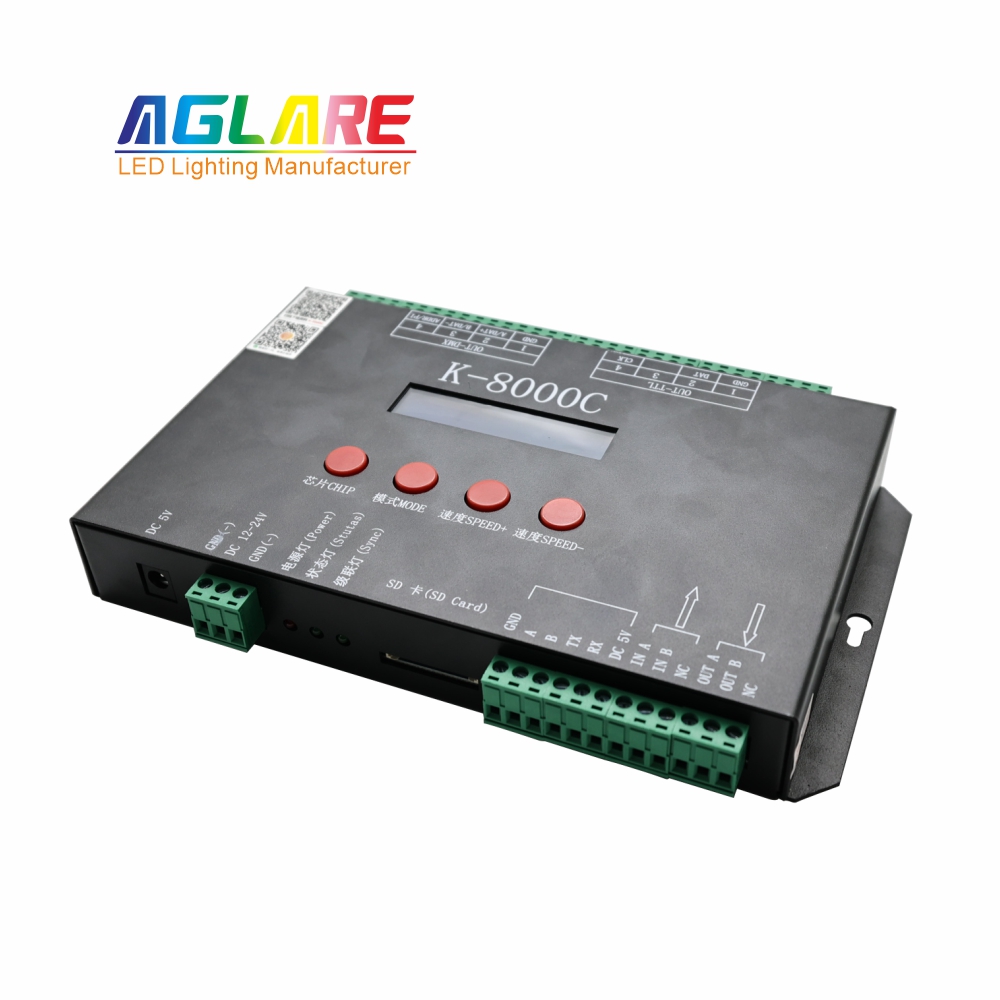

Bluetooth Connection K-8000C Pixel Controller with SD card

Item Type:

  • Item Type: SPI LED Controler
  • Model Number: K-8000C
  • Lamp Power(W):5W
  • Input Voltage(V): DC5V or DC12V-24V
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

Bluetooth Connection K-8000C Controller LED Pixel SPI Offline DC5V-24V 12V programmable DMX SD Card Suitable for WS2811 WS2812 RGB Full Color LED Pixel Light,LED amusement lamp,LED strip, LED matrix panel

Product  Features:
1.SD card offline controller
2.8-port output 8192 pixels maximum
3.Add a display based on old version
4.Add more IC chips + DMX512 chips
5.Comes with DMX512 chips write address code function
6.Support our all led digital strips, led pixel lights, etc



Product Parameters

programmable led controller

 Model Number： K-8000C
Operating power:  DC5V or DC12V-24V input
Type:  SD card
Capacity: 128MB-32GB
Power consumption: 5W
Format:  FAT Or FAT32
Data transmission port: 3pin wiring terminal
Dimensions: L159mm*W146mm*H30mmm
Operatingtemperature: -20℃℃~75℃℃
Storage file:  *.led
Item Type:  SPI LED Controler
Weight: 0.8kg


k-8000c controller
K-8000C LED Controller 8 Ports 8192 Pixels
addressable led controller software
K8000C addressable LED controllers
K8000C Pixel Controller with SD card
best addressable led controller
K-8000C System Features:
1. 32 to 65536-degree grayscale control, Gamma correction processing handle.
2. Supports various point and line light sources, as well as handles of various rules and specific shapes.
3. The controller has 8 port outputs, each port can support up to 512/1024 lights (DMX lights can support up to 512 pixels).
4. The playback content is stored in the SD card. The SD card can store up to 32 files. The SD card capacity supports 128MB-32GB.
5. The controller can be used alone, or multiple controllers can be cascaded. Cascading photoelectric isolation method: anti-interference, better stability. The cascading distance of two controllers can be up to 150 meters, and 0.5M2 pure copper is required. power cable.
6. The controller support chip can be locked in the software to support the IC, or it can be unlocked in the software to support the IC. Select the supported IC through the controller CHIP button. This solution is more flexible and convenient.
7. For DMX lighting IC, the controller has its own address writing function; in addition, using our 2016 LedEdit-K V3.26 or higher version can perform one-click address writing function setting.
8. Support the load light to be 4-channel (RGBW) pixels, or divided into single-channel point pixels.
9. Enhanced 485 TTL and 485 differential (DMX) signal output.
10. The controller comes with the following test effects: 1. Red, green, blue and black jump; 2 Red, green, blue and black gradient; 3 Red, green and blue run simultaneously.

Notes:

1. The led controller loads 512 pixels of the lamp, and the speed can reach 30 frames/second. The 768-point pixel speed can reach 25 frames/second. The 1024-point pixel speed is about 22 frames/second (the above parameters take 1903 as an example). IC, different ICs
