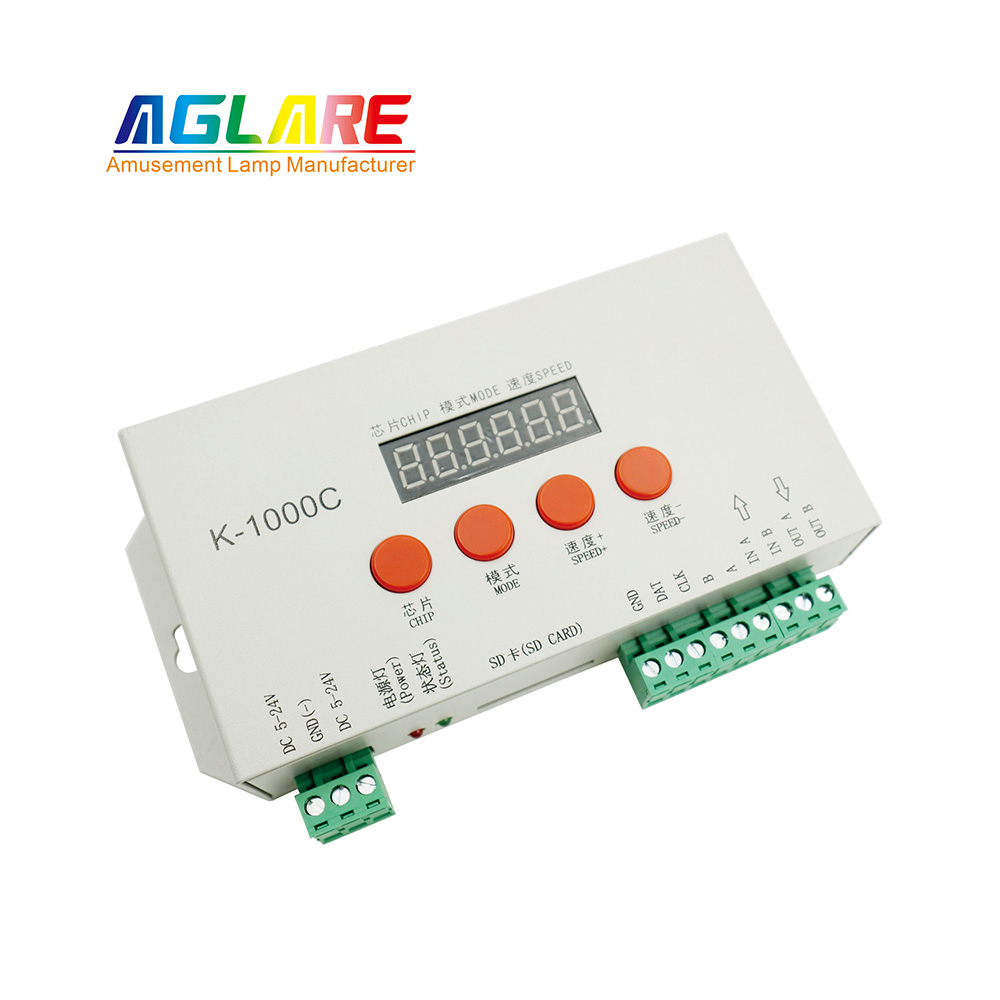

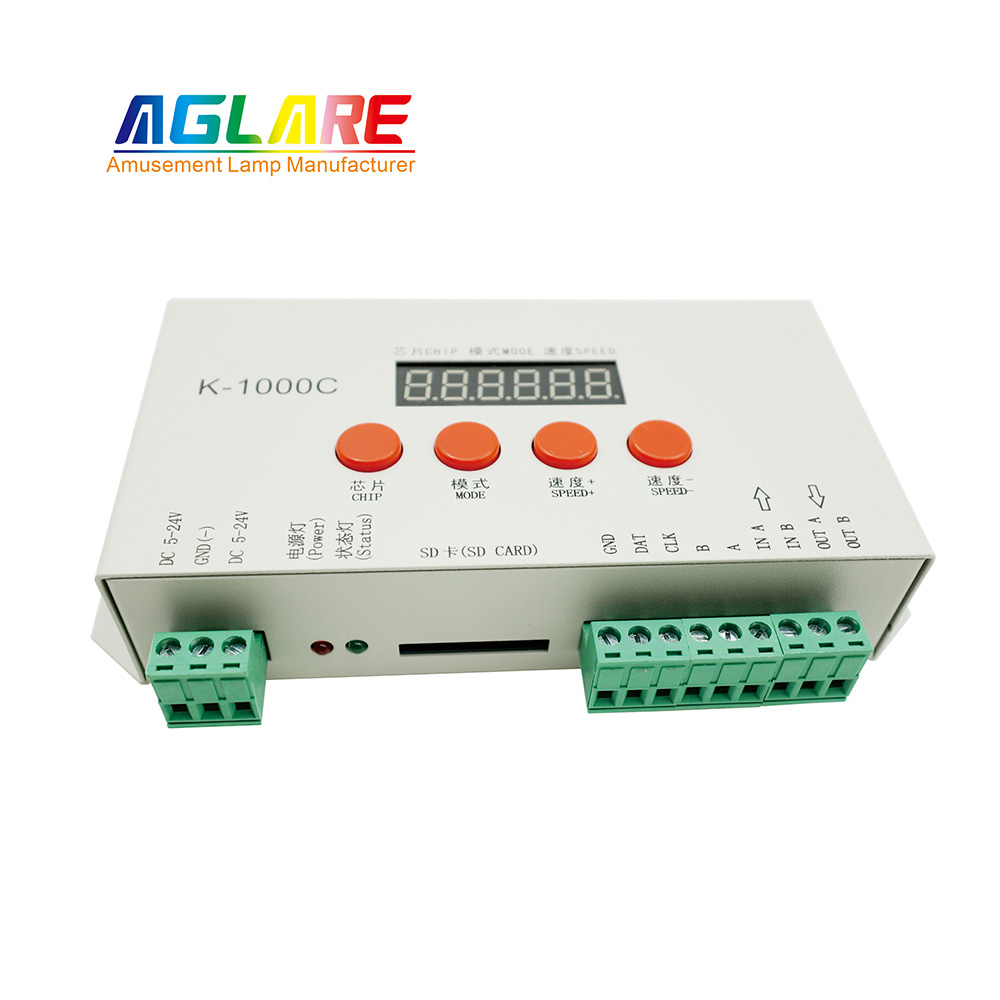

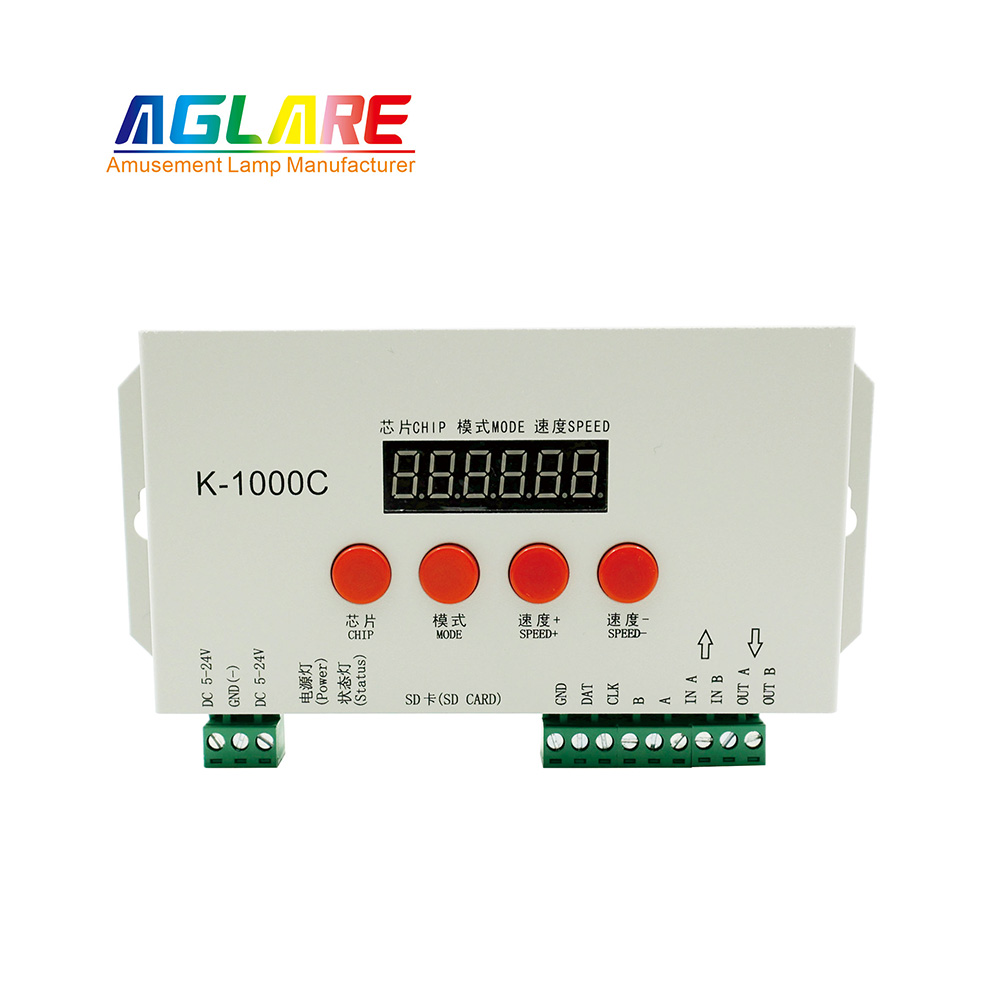

K-1000C Pixel LED Controller, 5V-24V Input,Programmable Controller

Item Type: K-1000C

  • LEDchip:
  • Item Type: K-1000C
  • Rating:
  • Lamp Power(W):2W
  • Input Voltage(V): 5V -24V
  • Warranty(Years): 1
Add to
Inquiry
  • Product Details
  • Parameters

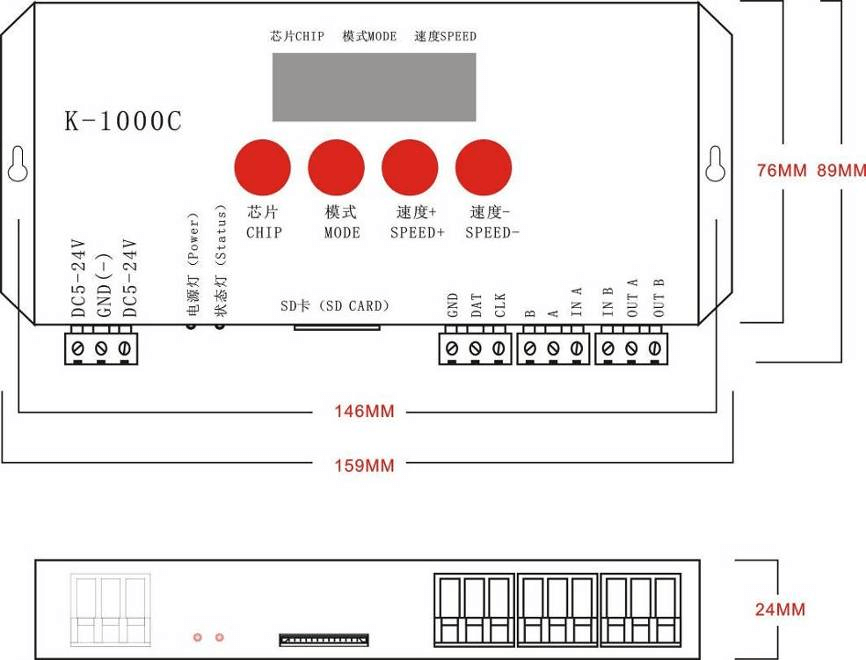

  • Structure
  • Application
  • Package
  • Downloads

K-1000C LED Controller


It supports all the smart IC on the market . Including WS2812B,WS2811,WS2813,SK9822,SK6812RGBW,APA102C,WS2801,etc . All the dual data led chip , data and clock led chip,single data led chip. It is suitable for engineering projects or customers’ DIY project .Support SD card 128MB-32GB. Install LEDEDIT software on window computer.


 K-1000C pixel LED Controller


The K-1000C is the successor to the T-1000S Controllers and additionally supports various RGBW LED drivers (4 channels). He also has a display.

The K-1000C controller can drive a maximum of 2,048 RGB LED pixels. Up to 512 pixels can be controlled with a frame rate of 30fps. If more than 512 pixels are connected to the controller, the controller automatically shuts down the frame rate.

The programs are created with the freely available software LEDEdit (as of version 2018) on the computer and then stored on SD card.

The programs stored on the SD card can then be selected by means of buttons on the K-1000C controller and changed in speed. An SD card can store up to 32 programs.

Support Chips Max. support Light
UCS19**, UCS29**; TM18**, SM167**, WS28**, GS82**; SK6812 maximum 1536 pixels with light
SM16716, 16726 (maximum 1536 pixels with light) maximum 1536 pixels with light
SM16703,09,12,SM16716,16726(SM full series TTL/SPI signal IC) maximum 1536 pixels with light
 P9813  maximum 1536 pixels with light
 LPD6803 maximum 1536 pixels with light
LX1003, 1203 maximum 1536 pixels with light
WS2801 maximum 1536 pixels with light
LPD1886 maximum 1536 pixels with light
TM1913 maximum 1536 pixels with light
TM1914 maximum 1536 pixels with light
P9883, P9823 (Maximum 1536 pixels with light)
International standard DMX512（like: UCS512, SM512, TM512, GS512 etc） up to 512 pixels, suggest to support ≤320 pixels）


K-1000C pixel LED Controller
