Programmable K-4000C LED Controller With 4 Ports Supports SD Card

Item Type: K-4000C

  • LEDchip:
  • Item Type: K-4000C
  • Rating:
  • Lamp Power(W):5W
  • Input Voltage(V):  DC5V Or DC12-24V
  • Warranty(Years): 1
Add to
Inquiry
  • Product Details
  • Parameters
  • Structure
  • Application
  • Package
  • Downloads

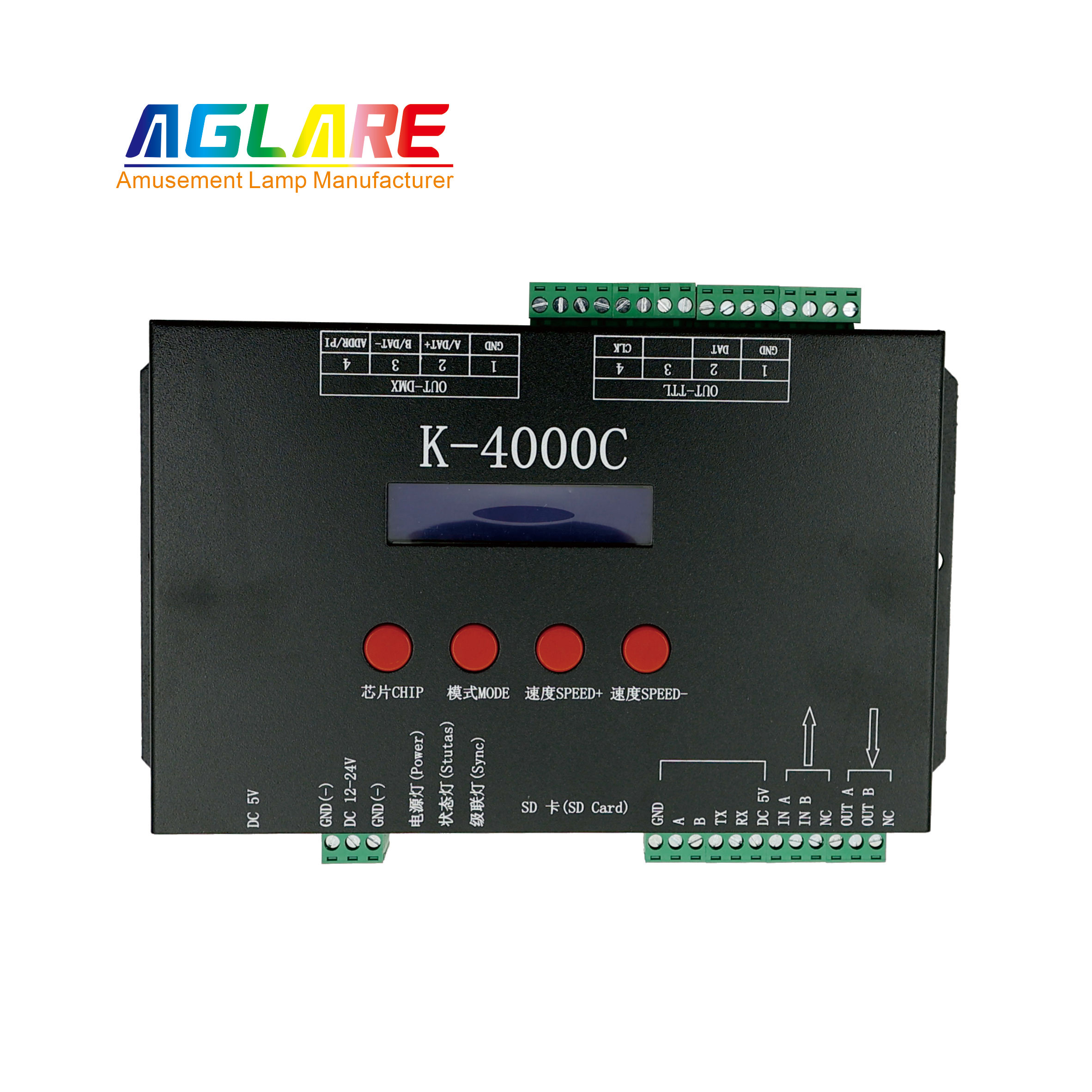

K-4000C Programmable LED Controller

The K-4000C Programmable Controller for Digital LED Strip Lights, which with 4 output ports and each port can support up to 512/1024PCS Pixels(the max 512 pixels of the DMX luminaire is exemplified by 3 channels). the K4000C Controller can single set use and multiple controllers cascade, cascade distance between two Controllers can reach up to 150meters, need to use 0.5㎡ pure copper power cord for anti-interference and better stability. the K4000C Controller support chip can lock the support IC in software or not lock the support IC in the software, select the support IC through the Controller CHIP button, this scheme is more flexible and convenient. the Programmable Controller supports SD Card that plays content stored in it, the SD card can store up to 32 effect files and capacity from 128MB to 32GB. there are 3 test effects built-in, which you can use to test the Digital LED Strips that are connected. supports various point or line light sources, all kinds of rules and specifically shaped handles, 32 to 65536-degree gray control, Gamma correction procession handle. the Digital Controller for DMX luminaire comes with a write address function, with the 2016 LedEdit-K V3.26 or higher version software, one-click address function can be set. supports on-board luminaires with 4 channels(RGBW) pixels or split into single-channel point pixels.

Working Temperature

Working power

Power

Weight

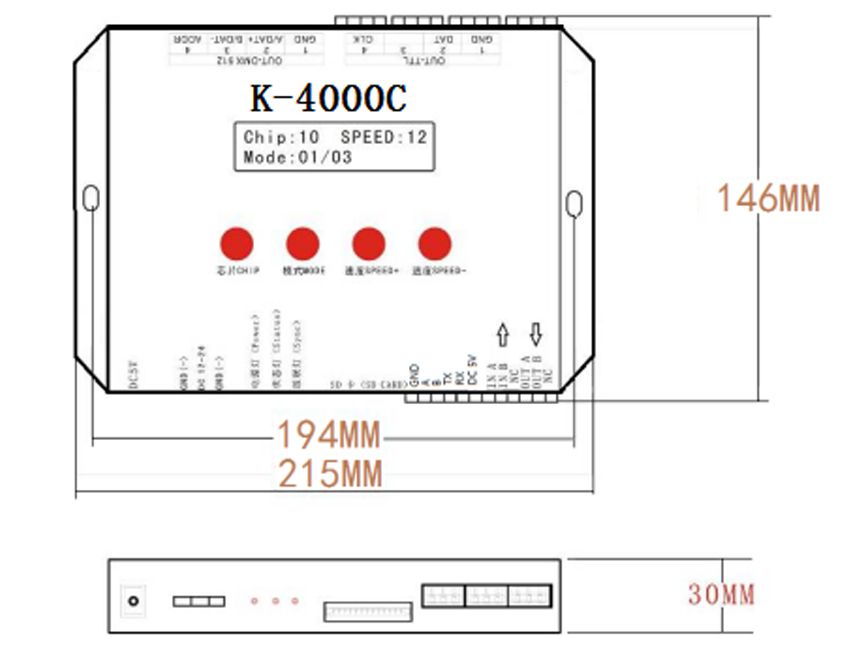

Size

-20℃—85℃

DC 5V or DC 12-24V input

5W

0.8Kg

L215mm * W146 mm*  H30 mm

Programmable K-4000C LED Controller With 4 Ports Supports SD Card

00: UCS19**, UCS29**, TM18*, SM167**, WS28**, GS82**, SK6812 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


01: SM16716, 16726 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


02: P9813 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


03: LPD6803 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


04: LX1003, 1203 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


05: WS2801 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


06: LPD1886 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


07: TM1913 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


08: TM1914 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


09: P9883, P9823 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


10: DMX (maximum with light 512*4=2048 pixels, it is recommended to load ≤320*4=1280 pixels)


11: DMX 500K (maximum with light 512*4=2048 pixels, it is recommended to load ≤320*4=1280 pixels)


12: DMX 250K-CZF (maximum with light 512*4=2048 pixels, recommended loading ≤320*4=1280 pixels)


13: DMX 500K-CZF (maximum with light 512*4=2048 pixels, recommended loading ≤320*4=1280 pixels)


14: UCS5603-Test (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


15: UCS5603A (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


16: UCS5603B (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


17: TM1814 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


18: INK1003 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


19: APA102 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


20: UCS8904 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


21: SM16714 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


22: SM16813 (maximum with light 1024*4=4096 pixels, recommended loading ≤512*4=2048 pixels)


23: GS8512 (maximum with light 512*4=2048 pixels, recommended loading ≤320 *4=1280 pixels)
