Product DEtails

Home > Product > Accessories > LED Controller > K-8000C Programmable DMX/SPI SD Card LED Pixel Controller
  • K-8000C Programmable DMX/SPI SD Card LED Pixel Controller
  • K-8000C Programmable DMX/SPI SD Card LED Pixel Controller
  • LED Controller - K-8000C Programmable DMX/SPI SD Card LED Pixel Controller
  • LED Controller - K-8000C Programmable DMX/SPI SD Card LED Pixel Controller
  • LED Controller - K-8000C Programmable DMX/SPI SD Card LED Pixel Controller
  • LED Controller - K-8000C Programmable DMX/SPI SD Card LED Pixel Controller

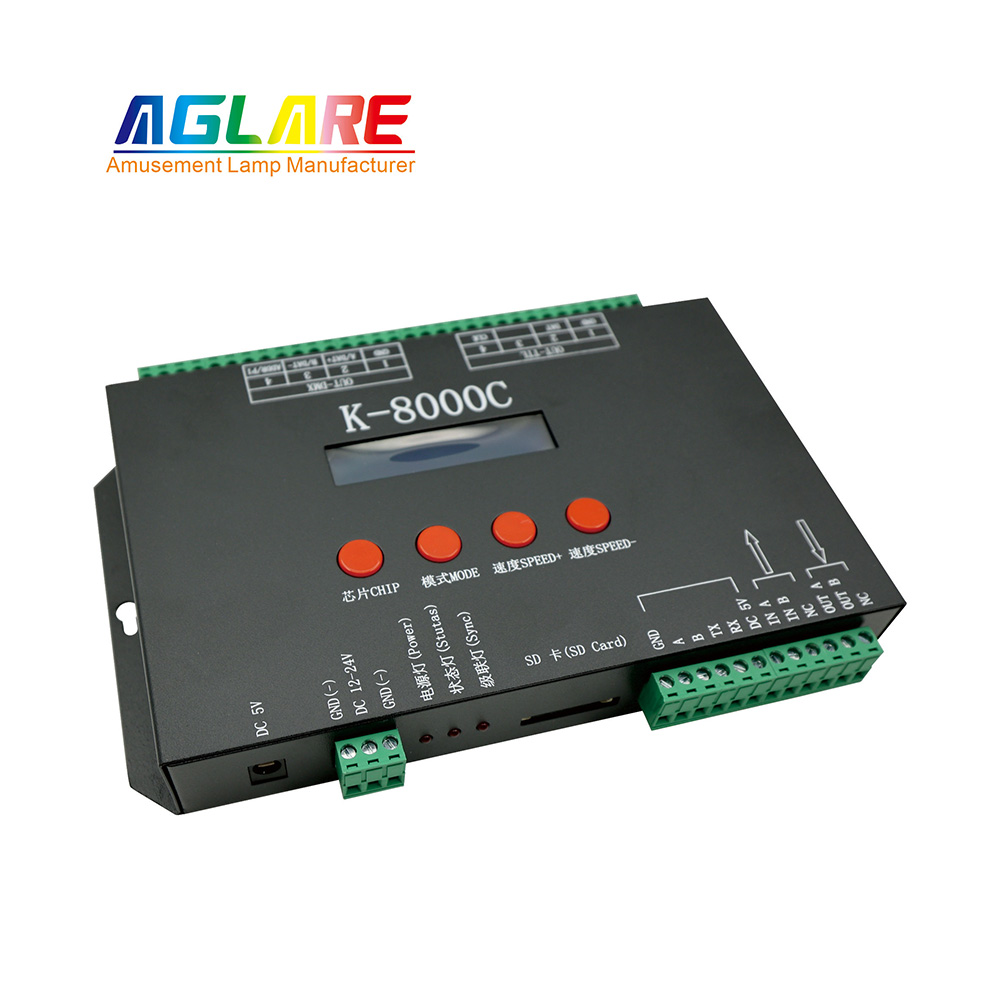

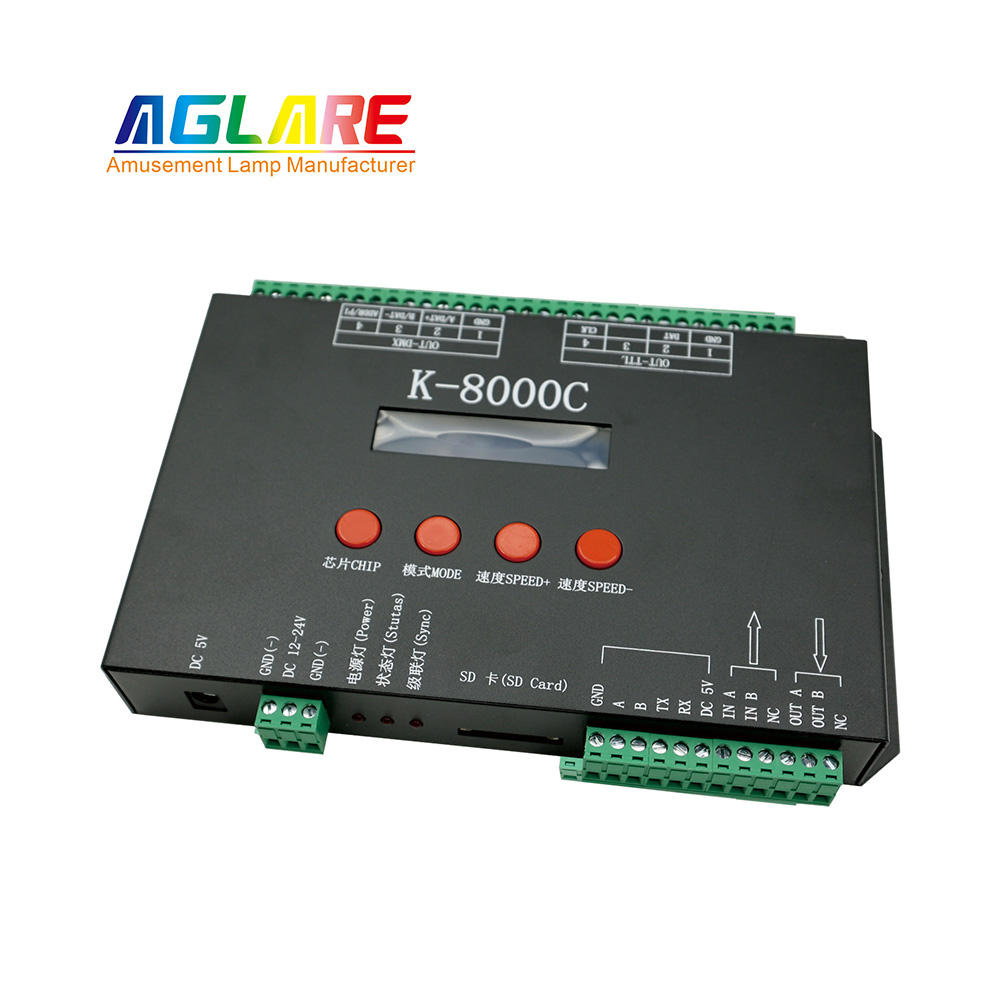

K-8000C Programmable DMX/SPI SD Card LED Pixel Controller

Item Type: K-8000C

  • LEDchip:
  • Item Type: K-8000C
  • Rating:
  • Lamp Power(W):5W
  • Input Voltage(V): DC 5V or DC 12-24V
  • Warranty(Years): 1

Add to
Inquiry
  • Product Details
  • Parameters

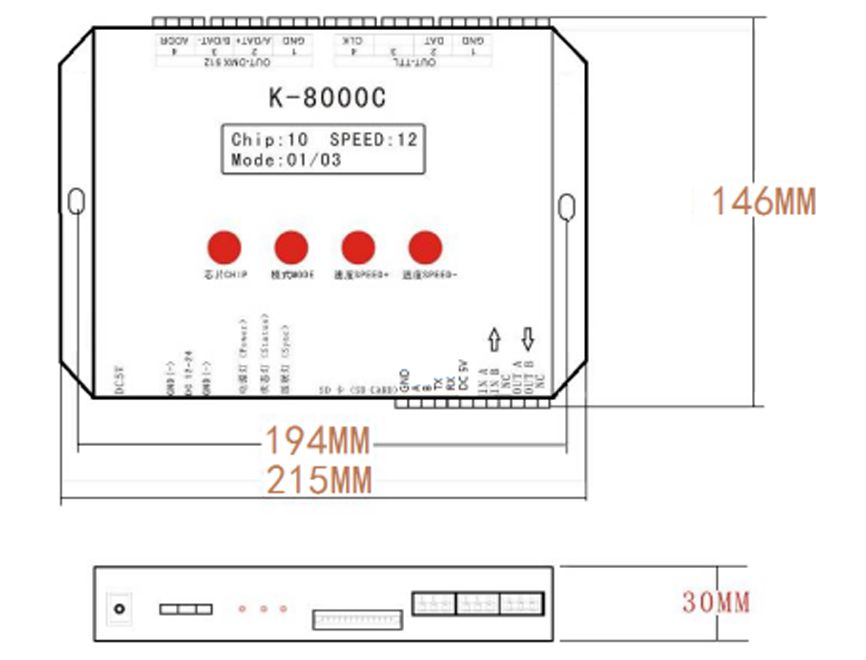

  • Structure
  • Application
  • Package
  • Downloads

K-8000C Programmable LED Controller

Check the K-8000C Programmable RGB Pixel SD Card LED Controller, which with 8 output ports and the max loading pixels of each port up to 1024 PCS, supports various types of smart ICs, like WS2801, UCS1903, LPD6803, LPD1886, TM1913, etc, supports various point, line light source, all kinds of rules and specifically shaped handle. the K-8000C supports SD Card and support a capacity up to 32GB, you can design and store the lighting effect in the card, the SD Card can store up to 32 files. the Pixel Controller can single-use and multiple controllers cascade. cascade optical isolation mode: interference, better stability, cascade distance between two controllers can up to 150 meters, need to use 0.5㎡ pure copper power cord. the K8000C supports chip can lock the support IC in the software or not lock, you can select the type of IC through the physical button on the LED Controller, this scheme is more flexible and convenient.

Working Temperature

Working power

Power

Weight

-20℃—85℃

DC 5V or DC 12-24V input

5W

0.8Kg

K-8000C Programmable DMXSPI SD Card LED Pixel Controller

00: UCS19**, UCS29**, TM18*, SM167**, WS28**, GS82**, SK6812 (maximum with light 1024*8=8192 pixels)

01: SM16716, 16726 (maximum with light 1024*8=8192 pixels)

02: P9813 (maximum with light 1024*8=8192 pixels)

03: LPD6803 (maximum with light 1024*8=8192 pixels)

04: LX1003, 1203 (maximum with light 1024*8=8192 pixels)

05: WS2801 (maximum with light 1024*8=8192 pixels)

06: LPD1886 (maximum with light 1024*8=8192 pixels)

07: TM1913 (maximum with light 1024*8=8192 pixels)

08: TM1914 (maximum with light 1024*8=8192 pixels)

09: P9883, P9823 (maximum with light 1024*8=8192 pixels)

10: DMX (maximum with light 512*8=4096 pixels, it is recommended to load ≤320*8=2560 pixels)

11: DMX 500K (maximum with light 512*8=4096 pixels, recommended loading ≤320*8=2560 pixels)

12: DMX 250K-CZF (maximum with light 512*8=4096 pixels, recommended loading ≤320*8=2560 pixels)

13: DMX 500K-CZF (maximum with light 512*8=4096 pixels, recommended loading ≤320*8=2560 pixels)

14: UCS5603-Test (maximum with light 1024*8=8192 pixels)

15: UCS5603A (maximum with light 1024*8=8192 pixels)

16: UCS5603B (maximum with light 1024*8=8192 pixels)

17: TM1814 (maximum with light 1024*8=8192 pixels)

18: INK1003 (maximum with light 1024*8=8192 pixels)

19: APA102 (maximum with light 1024*8=8192 pixels)

20: UCS8904 (maximum with light 1024*8=8192 pixels)

21: SM16714 (maximum with light 1024*8=8192 pixels)

22: SM16813 (maximum with light 1024*8=8192 pixels)

23: GS8512 (maximum with light 512*8=4096 pixels, it is recommended to load ≤320 pixels*8=2560)

Product Category

Hot Products

Related Products

  • RGB auto E14 AC24V Amusement li

    Item Type: YJLED-048

    • LEDchip: 5050
    • Item Type: YJLED-048
    • IP Rating: IP44
    • Lamp Power(W): 1-1.5W
    • Input Voltage(V): AC 24V
    • Warranty(Years): 1
    Add to inquiry More

  • 20w outdoor LED basketball cour

    Item Type: AF401-Y20

    • LEDchip: Epistar / Bridgelux
    • Item Type: AF401-Y20
    • IP Rating: IP65
    • Lamp Power(W): 20W
    • Input Voltage(V): 100-240V AC
    • Warranty(Years): 2
    Add to inquiry More

  • 500w outdoor LED Projector RGB

    Item Type: AT247F-M500RGB

    • LEDchip: 120pcs 3w rgb
    • Item Type: AT247F-M500RGB
    • IP Rating: IP65
    • Lamp Power(W): 500W
    • Voltage(V): AC 100-277V
    • Warranty(Years): 2
    Add to inquiry More

  • 60mm 18 SMD 5050 rgb ucs1903 LE

    Item Type: YJLED-004B1

    • LEDchip: 5050
    • Item Type: YJLED-004B1
    • IP Rating: IP65
    • Lamp Power(W): 1-3.6W
    • Input Voltage(V): DC12/24V AC 24V
    • Warranty(Years): 1
    Add to inquiry More

  • 10W LED Constant Current Driver

    Item Type: YJ-010WE036-300P

    • LEDchip:
    • Item Type:YJ-010WE036-300P
    • Rating:
    • Lamp Power(W):10W
    • Input Voltage(V):AC90-240V
    • Warranty(Years):2
    Add to inquiry More

  • Ultra Slim COB 100W flood light

    Item Type: AF204-Y100

    • LEDchip: Epistar / Bridgelux
    • Item Type: AF204-Y100
    • IP Rating: IP65
    • Lamp Power(W): 20W
    • Input Voltage(V): 100-240V AC
    • Warranty(Years): 2
    Add to inquiry More

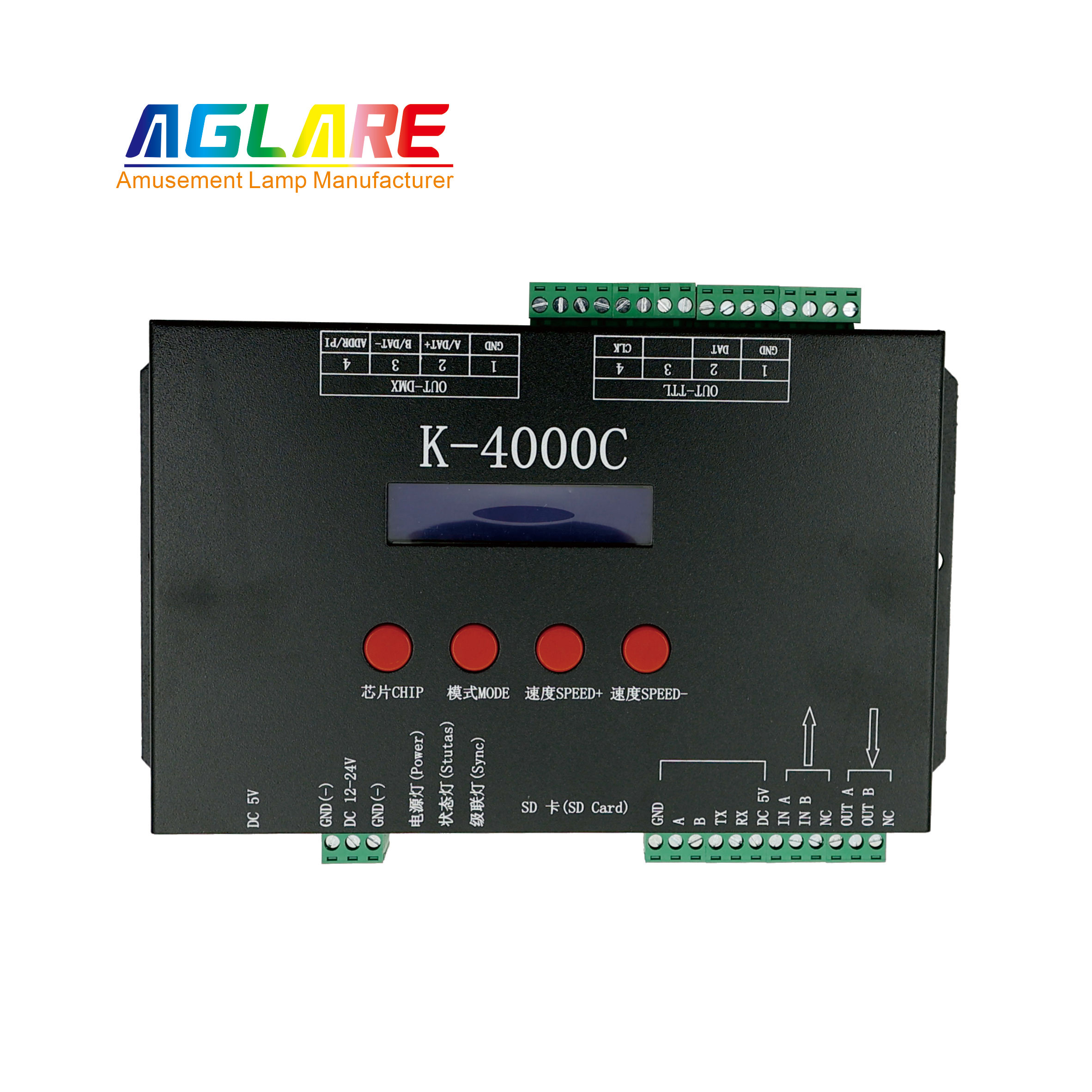

  • Programmable K-4000C LED Contro
